industrial rock crusher, often referred to as a crushing apparatus, is a piece of mechanical equipment engineered to reduce large solid materials into precisely sized particles by inducing brittle deformation via external mechanical force. It serves as a cornerstone in sectors including mining, construction, road construction, and construction waste recycling, playing an indispensable role in sand and gravel aggregate production, ore processing, and solid waste resource utilization. As a vital category of industrial rock processing equipment, it underpins the efficiency and productivity of modern material handling industries.

I. Core Operational Mechanisms of Industrial Rock Crushers

The fundamental function of a rock crusher is to overcome the internal cohesive forces of materials using mechanical power, thereby breaking down bulk materials into smaller fragments. Based on the distinct types of mechanical forces applied, crushers are categorized into three primary types:

Compression Crushing: This method involves squeezing materials between two opposing moving surfaces, leading to compressive fracture and bending failure. Jaw crushers and cone crushers are the most representative examples of this category;
Impact Crushing: High-speed rotating components such as hammers and blow bars strike the materials, or materials are made to collide with each other at high velocities, resulting in fragmentation. Impact crushers and vertical shaft impact (VSI) crushers are typical equipment utilizing this principle;
Grinding Crushing: Fine particle reduction is achieved through friction and abrasion between materials and grinding media. Commonly employed in equipment like ball mills, this method can also act as an auxiliary crushing process in combination with other crusher types.

II. Primary Classifications of Industrial Rock Crushers

Industrial rock crushers can be classified according to crushing stage, structural design, and application scenarios. The three most widely adopted types are detailed below:

1. Jaw Crusher – Primary Crushing Workhorse

Jaw crushers stand as the most traditional and widely used primary crushing equipment, designed to handle the initial size reduction of raw materials. Their structure consists of a fixed jaw plate and a movable jaw plate that form a crushing chamber. Driven by an eccentric shaft, the movable jaw plate executes reciprocating oscillating motions, compressing and splitting large materials fed into the chamber. Boasting a large feed opening, jaw crushers can process various hard rocks with compressive strength up to 320MPa, such as granite and basalt, making them ideal for primary crushing operations in mines and quarries.

2. Cone Crusher – Medium and Fine Crushing Specialist

Cone crushers are primarily designed for medium and fine crushing tasks, with common variants including spring cone crushers and hydraulic cone crushers. The core components are a movable cone and a fixed cone, which together form a crushing cavity. The movable cone performs gyratory movements under the drive of an eccentric sleeve, exerting compression, rolling, and shearing forces on the trapped materials. With a high crushing ratio and uniform product particle size, cone crushers are suitable for processing ores and rocks with compressive strength below 300MPa, serving as a key piece of equipment in sand and gravel aggregate production lines for intermediate and fine crushing stages.

3. Impact Crusher – Medium Crushing and Shaping Solution

Impact crushers rely on high-speed rotating blow bars to impact materials. After hitting the impact plates, materials rebound and collide with incoming feedstock, undergoing multiple crushing cycles. The resulting products feature a cubic shape with minimal needle-like and flaky particles, enabling both medium crushing and material shaping. Ideal for processing soft rocks, construction waste, and limestone with compressive strength under 180MPa, impact crushers are widely used in road construction sand and gravel production.

III. Diverse Application Scenarios of Industrial Rock Crushers

Industrial rock crushers find extensive use across multiple industries, with key application areas including:

Mining Industry: Processing various ore raw materials to produce particles that meet the size requirements of mineral processing and smelting procedures;
Construction Engineering: Reducing large boulders into sand and gravel aggregates for concrete, mortar, and road base construction;
Construction Waste Recycling: Crushing and reusing solid wastes such as concrete blocks and bricks generated from demolition and construction projects, realizing resource recycling and environmental protection;
Road Construction Sector: Manufacturing qualified crushed stone and manufactured sand to support the construction of highways, railways, airports, and other infrastructure projects.

IV. Mobile vs. Fixed Industrial Rock Crushers: Key Differences

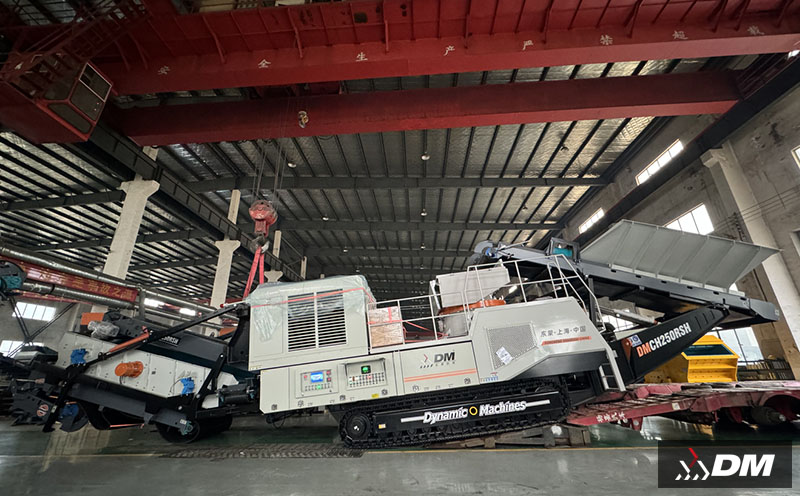

In addition to traditional fixed crushers, which require permanent foundation construction and are suited for large-scale production lines, mobile crushers have gained increasing popularity in recent years. Integrating crushing, screening, and conveying systems onto a movable chassis or crawler track, mobile crushers eliminate the need for fixed foundations and can be directly transported to job sites. They are particularly well-suited for decentralized construction waste processing, remote quarry operations, and temporary engineering projects, offering advantages such as flexible mobility, rapid deployment, and reduced transportation costs.

V. Overview of Industrial Rock Crusher Technology

As the core equipment for material size reduction, the selection of an industrial rock crusher must be based on factors such as material hardness, required particle size, and application scenarios. From traditional fixed models to advanced intelligent and mobile crushers, technological advancements in industrial rock crushing equipment have consistently focused on efficiency, energy conservation, environmental friendliness, and flexibility. These innovations provide critical technical support for the sustainable development of mining, infrastructure construction, and solid waste treatment industries.

What is a rock crusher?

Operational Principles of Industrial Rock Crushers: A Comprehensive Guide

industrial rock crusher is the core equipment for material crushing in mining, infrastructure, and solid waste treatment industries. Its primary objective is to overcome the internal bonding forces of materials through external mechanical force, reducing large solid materials into the particle sizes required for industrial applications. While different types of industrial rock crushers vary significantly in structural design and application scenarios, they all utilize mechanical forces such as compression, impact, grinding, and splitting to achieve material fragmentation. This guide provides a detailed analysis of the operational principles and application scope of mainstream industrial rock crushers.

I. Fundamental Crushing Forces of Industrial Rock Crushers

Regardless of their type, all industrial rock crushers operate based on one or more of the following mechanical forces, which form the basis of their crushing functionality:

Compression Force: Generated by the relative movement of two working surfaces, this force compresses materials until they fracture due to insufficient compressive strength. It is ideal for primary and medium crushing of high-strength materials like hard rocks and ores;
Impact Force: High-speed moving components such as hammers and blow bars, or the high-velocity movement of materials themselves, create impact forces that cause brittle fracture. This force is suitable for crushing and shaping medium and soft materials;
Grinding Force: Achieved through friction and abrasion between materials and grinding media, as well as between particles themselves, this force is used for fine crushing processes;
Splitting Force: Sharp components apply splitting forces to materials, causing them to crack along natural fissures or weak planes. This force often acts as an auxiliary to compression crushing.

II. In-Depth Analysis of Mainstream Industrial Rock Crusher Operations

1. Jaw Crusher: Compression-Splitting Driven Primary Crusher

Jaw crushers are the most widely used primary crushing equipment, composed of key components including a fixed jaw plate, movable jaw plate, eccentric shaft, and flywheel. Their operational process is as follows:

The motor drives the eccentric shaft to rotate via a V-belt, which in turn causes the movable jaw plate to oscillate reciprocally around the suspension shaft. This motion leads to periodic changes in the volume of the crushing chamber between the fixed and movable jaw plates. When the movable jaw plate moves toward the fixed one, materials in the chamber are compressed, split, and bent until they break into particles of the desired discharge size. As the movable jaw plate moves away, the crushed materials are discharged under gravity. This cyclic process enables continuous primary crushing operations. With a large feed opening, jaw crushers can handle hard rocks like granite and basalt with compressive strength ≤320MPa, and the discharge particle size can be adjusted by modifying the gap between the jaw plates.

2. Cone Crusher: Compression-Rolling Based Medium and Fine Crusher

Cone crushers, including spring and hydraulic types, are the core equipment for medium and fine crushing of hard rocks. Their operational principle is described below:

The key components are the movable cone and fixed cone, which form an annular crushing chamber. The motor drives the eccentric sleeve to rotate through a transmission system, causing the movable cone to perform gyratory motions. Due to the eccentricity between the axes of the movable and fixed cones, materials in the chamber are subjected to compression, rolling, and shearing forces, leading to fragmentation. When the movable cone moves away from the fixed cone, the crushed materials fall to complete a crushing cycle. Hydraulic cone crushers are equipped with a hydraulic cavity cleaning and overload protection system. When uncrushable objects enter the chamber, the hydraulic system lifts the movable cone to expel the foreign objects and automatically resets, ensuring stable operation. With a high crushing ratio and uniform product size, cone crushers are suitable for processing ores and rocks with compressive strength ≤300MPa.

3. Impact Crusher: Impact-Collision Oriented Medium Crusher and Shaper

Impact crushers focus on medium crushing and material shaping, with core components including a rotor, blow bars, impact plates, and a feed inlet. Their working mechanism is as follows:

The motor drives the rotor to rotate at high speeds, typically ranging from 1000 to 1500 revolutions per minute, with the blow bars moving synchronously with the rotor. When materials enter the equipment through the feed inlet, they are first struck by the high-speed rotating blow bars. The energized materials collide with the impact plates at high velocity, rebound, and collide with incoming materials. Simultaneously, materials are compressed and ground between the blow bars and impact plates. After multiple rounds of impact, collision, and compression, materials are gradually reduced to the specified particle size and discharged. The finished products feature a cubic shape with low needle and flake content, making impact crushers ideal for processing limestone, construction waste, and gangue with compressive strength ≤180MPa.

4. Vertical Shaft Impact (VSI) Crusher: Impact-Grinding Sand Making Equipment

VSI crushers, commonly known as sand makers, are the core equipment for manufactured sand production. They operate in two modes: "stone-on-stone" and "stone-on-iron":

Stone-on-Stone Mode: Materials enter the equipment and are divided into two streams by a distributor. One stream enters the center of the high-speed rotating impeller, is accelerated, and is thrown outward by centrifugal force, colliding violently with the other stream of materials falling from the distributor's periphery. At the same time, materials collide with the wear-resistant lining of the crushing chamber, achieving crushing through mutual collision and grinding;
Stone-on-Iron Mode: Accelerated and projected by the impeller, materials collide directly with wear-resistant iron blocks in the crushing chamber, realizing crushing through impact and rebound. This mode offers higher crushing efficiency but results in faster wear of vulnerable parts.

VSI crushers produce fine, well-graded manufactured sand, making them ideal for processing hard rocks like granite and basalt to meet construction sand specifications.

III. Key Factors Influencing Industrial Rock Crusher Efficiency

To optimize crusher performance, it is essential to consider the following key factors that impact operational efficiency:

Material Properties: Compressive strength, moisture content, and clay content directly affect crushing results. Excess moisture can cause chamber blockages, while high hardness increases equipment wear;
Equipment Parameters: Rotor speed (for impact and VSI crushers), crushing chamber gap (for jaw and cone crushers), and the wear level of blow bars and jaw plates should be adjusted to optimal values based on material characteristics;
Feed Particle Size: The feed size must match the equipment's design specifications. Overly large feed particles can cause overload shutdowns, while excessively small particles reduce crushing efficiency.

IV. Conclusion

The operational principle of industrial rock crushers revolves around breaking down materials using mechanical force. Different crusher types combine forces such as compression, impact, and grinding to adapt to materials of varying hardness and particle size requirements. Jaw crushers excel at primary crushing, cone crushers specialize in medium and fine crushing of hard rocks, impact crushers handle medium crushing and shaping, and VSI crushers are dedicated to sand making. Mastering these operational principles is crucial for selecting the right equipment, optimizing operational parameters, and enhancing overall crushing efficiency.
