Crusher Manufacturers | Dongmeng

Product Details:

6.Mobile-impact-crushing-station

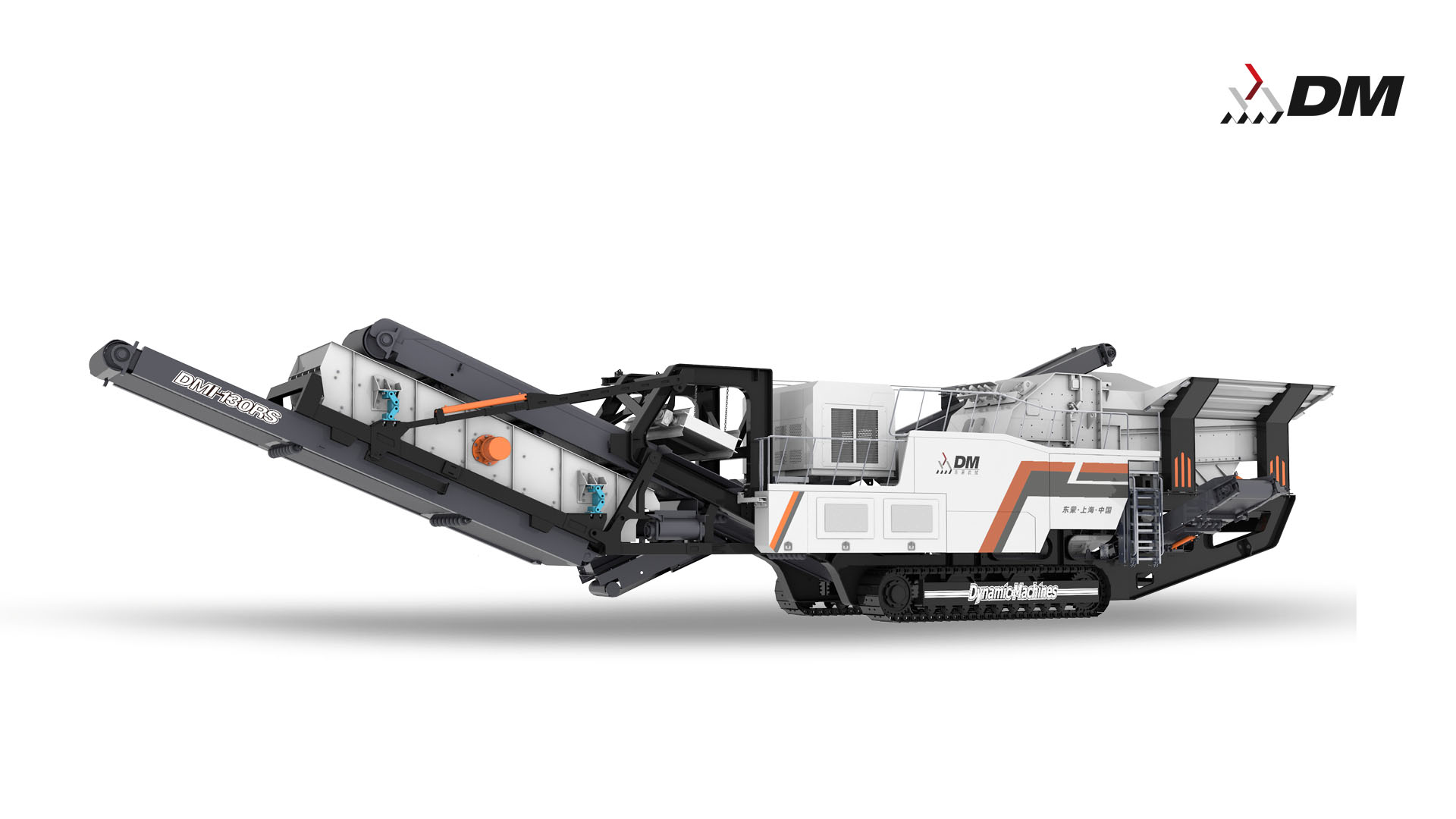

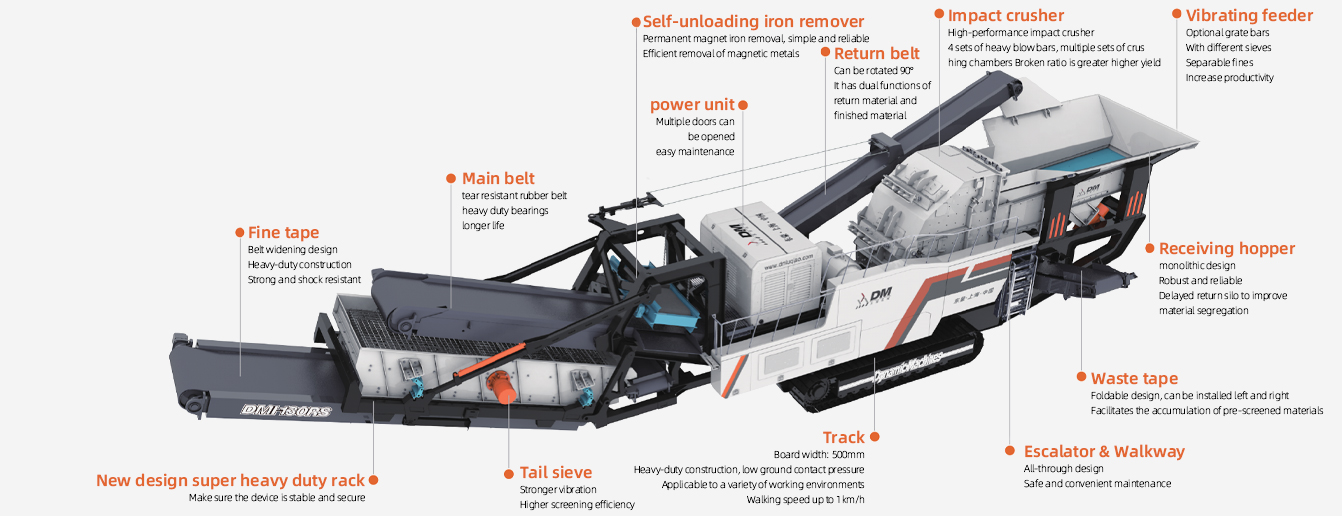

Mobile impact crushing station Using intelligent wireless remote control device, it can walk on its own crawler track, and can operate up and down ordinary flatbed trailers remotely by one person to realize fast transition operations.

The rear frame of the crusher is opened by hydraulic pressure, which is convenient for inspection and maintenance, and the side discharge belt can be disassembled and stacked. Heavy-duty rotors, high wear-resistant materials, and large crushing cavity make the feed granularity large, the product is stable, the output is high, the particle shape is good, and the crushing ratio is large. According to customer needs, optional iron remover or return system or plate feeding system.

Product Parameters:

Model DMI100RS DMI100RSH DMI130RS DMI130RSH DMI160RS DMI160RSH
Capacity(tph) 80 - 220 80 - 220 150 - 300 150 - 300 180 - 360 180 - 360
Crusher power(kw) 132 - 160 132 - 160 200 - 250 200 - 250 250 - 280 250 - 280
Max. Feed size(mm) 500 500 550 550 600 600
Engine power(kw) 93 280 93 360 93 420
External power(kw) 213 - 241 213 - 241 273 - 323 273 - 323 303 - 333 303 - 333
Transport size(L×W×H, M) 17×3.75×3.8 17×3.75×3.8 19.5×3.75×3.8 19.5×3.75×3.8 19.5×3.75×3.8 19.5×3.75×3.8
Weight(tons) 53 55 58 60 60 62

More Products:

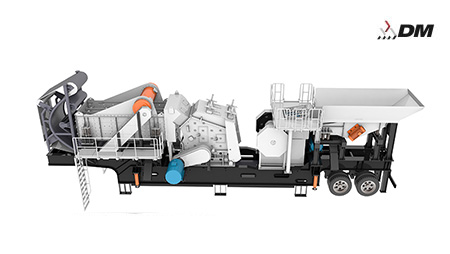

DLD Wheeled Mobile Jaw  Crushing Plant

DLD Wheeled Mobile Jaw Crushing Plant

Shanghai Dongmeng DLD Series Wheeled Mobile Jaw Crushing Plant is premium...

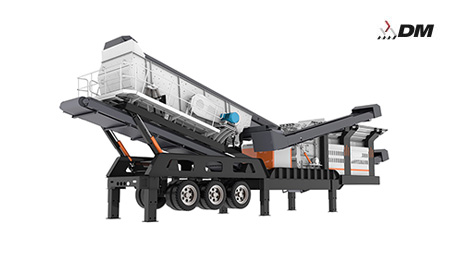

DLD Wheeled Mobile Impact  Crushing Plant

DLD Wheeled Mobile Impact Crushing Plant

Shanghai Dongmeng DLD Series Wheeled Mobile Impact Crushing Plant is...

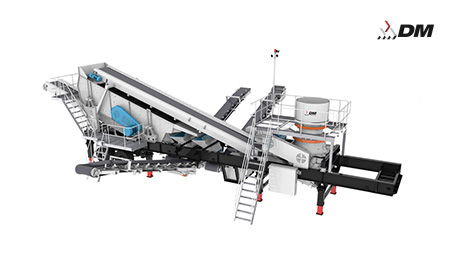

DLD Wheeled Mobile Cone Crushing Plant
