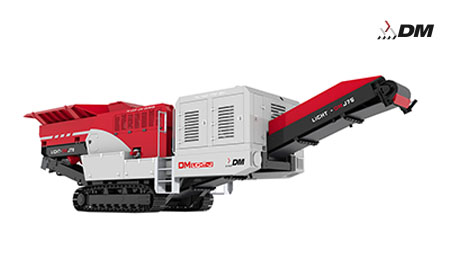

The DongMeng Tracked mobile light jaw crusher is equipped with the latest European style jaw crusher. This is an optimized design and manufacturing in terms of structure, material selection, technology, and assembly. The new type jaw crusher has the features of light weight, simple operation and large crushing ratio.
| Model | DMJ75H |
| Main Crusher Model / Power / Weight | DC75 / 75kw / 9.5t |
| Max. Feed Size | 450mm |
| Capacity | 55-150t/h |
| Feed and Discharge Height | 3050mm / 2800mm |
| Hopper Capacity | 3m³ |
| Engine Power | 159kw |
| Main Belt Conveyor | B700 x 9m |
| Side Materials Belt Conveyor | B500 x 2.3m |
| Machine Size (L×W×H, m) | Working state: 12.3x2.2x3.03m Transport state: 10.8x2.2x3.03m |
| Weight (ton) | 25t |
